Sluice Valves
for water works

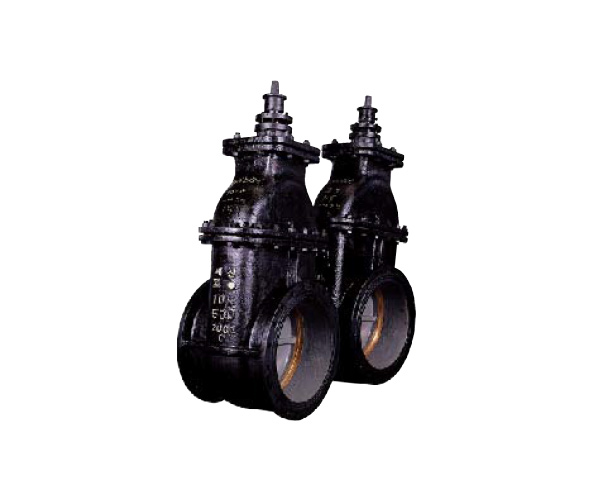

Sluice Valves

Intended Primarily for use with service water, this valve meets specification of KS B 2334(7.5K, 10K, 16K, 20K).
Available in several models operated manually by motor by headstock, or by cylinder.

Download

Spectification

개요
Size 7.5K, 10K : 50~500mm
16K, 20K : 50~300mm
Working Pressure 7.5kgf/㎠, 10kgf/㎠
16kgf/㎠, 20kgf/㎠
Valve End 7.5kgf/㎠, 10kgf/㎠ : KS D 4309, ISO R 13
16kgf/㎠ / 20kgf/㎠ : KS B 1511(16K, 20K)
Fluid Water, Sea Water
Direction of Opening Counter-Clockwise to open

Test Pressure

개요
부분 2종(7.5K) 3종(10K) 4종(16K) 5종(20K)
시트 7.5K 10K 16K 20K
몸통 14K 21K 24K 30K

Main Material

  • Body - Ductile Cast lron(GCD 450), Steel Casting(SC 410)
  • Disk - Ductile Cast lron(GCD 450), Steel Casting(SC 410)
  • Stem - Stainless Steel(STS 340, STS 403)

- The Other materials are available on request

Application

  •   Seawater
  •   Desalination Plants
  •  Corrosive service
