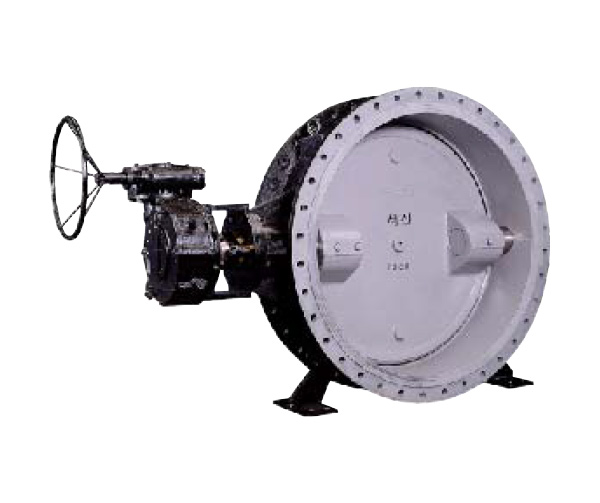

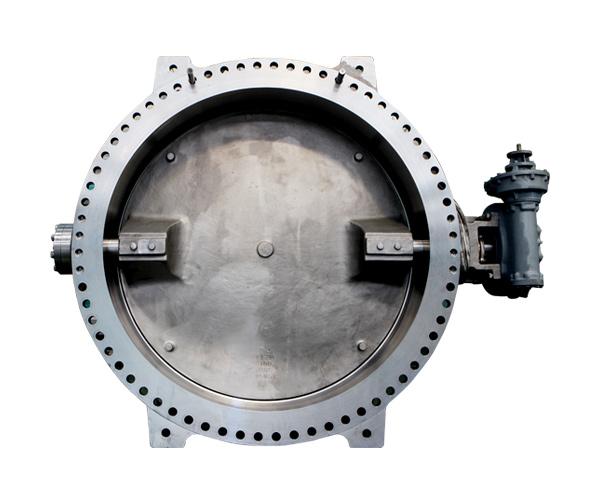

butterfly valve
for water works
BUTTERFLY VALVEWater Works

Intended Primarily for use with service water, this valve meets spectification of KS B 2333, BS 5155, AWWA C 504, JIS B 2064, available in several medels, operated manually, by motor, by cylinder, by head stock operation is easy and suited for heavy duty services.

Authorized by permit No. 02-2864 which grant use of K.S mark on the butterfly valve produtcs.

Download

Spectification

개요
Type of Fluid Service Water
Max. Working Pressure Type 1-4.5kgf / ㎠ (AWWA CLASS 25B)
Type 2-7.5kgf / ㎠ (AWWA CLASS 75B)
Type 3-10kgf / ㎠ (AWWA CLASS 150B)
Nomorinal Dimeter 200~30,000mm (8” ~ 120”)
Flange Dimension KS D 4309, AWWA C 207, Other Standards are available on request.
Installation Horizontal, Vertical or Floor Type
Operation Manual, Electric, Cylinder Type

Application

  •   Service water
  •   Waste water
  •   Industrial plants
