butterfly valve
for Power Plant

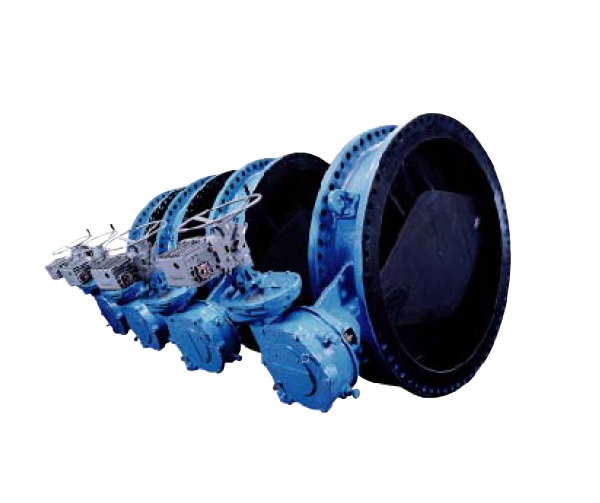

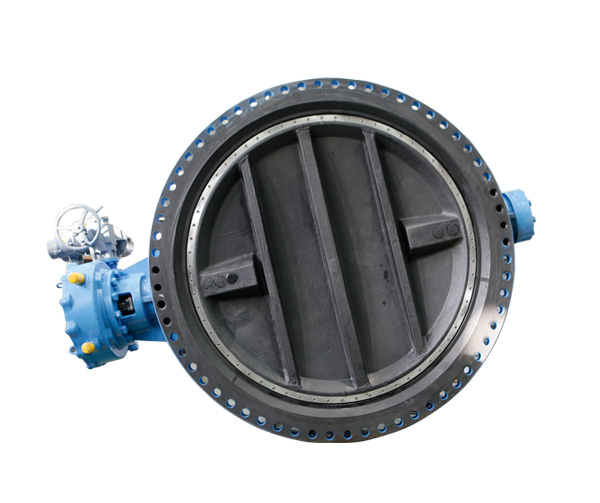

BUTTERFLY VALVEPower Plant

Employ an advanced lining procedure, this valves be designed and manufactured in accordance with AWWA C 504 or BS 5155 for use in corrosive service, that is circulating water service, condenser partition and condenser isolation for the electric utilitles, seawater application, desalination plants, chemical processes, and so on.

Operation is easy and suited for heavy duty service.

Rubber lining should be classified two types
ⓐ Fully rubber lined finish
ⓑ With rubber lined body

Download

Spectification

개요
Norminal Diameter 8”~ 120”(200~3,000mm)
Type of Fluid Seawater and Corrosive fluid.
Max. Working Pressure 232 psi (16kgf/㎠)
Flange Dimension ISO 2084 or AWWA C 207. BS 4504
Other Standards can also be provided
Installation Horizontal, Vertical
Hydraulic Test Body Pressure : 1.5 times of Working Pressure
Seat Leakage : The same as Working Pressure
Lining Natural Rubber (N.R)
Nitrile Rubber (NBR)
Ethylene-Propylenr(EPDM)
Coating Epoxy Resin Coating
Other materials are available on request.
Operation Manual(Worm gear type)
Electric(Worm gear type, Valve actuator type)
Cylinder type(Oil, Air)

Application

  •   Seawater
  •   Desalination Plants
  •  Corrosive service
