세진밸브공업(주) Non Slam Butterfly Type

PRODUCT INFO

Check valve

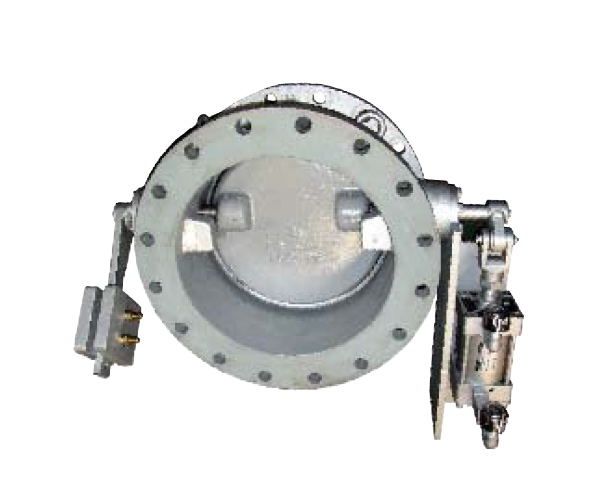

Non Slam Butterfly Type

Non Slam Butterfly Type

현재 광범위하게 사용되고 있는 체크밸브류의 대체용으로 체크밸브 기능에 버터플라이 밸브의 잇점을 추가시켜 첨예한 기능을 가진 제품입니다.

Download

Features

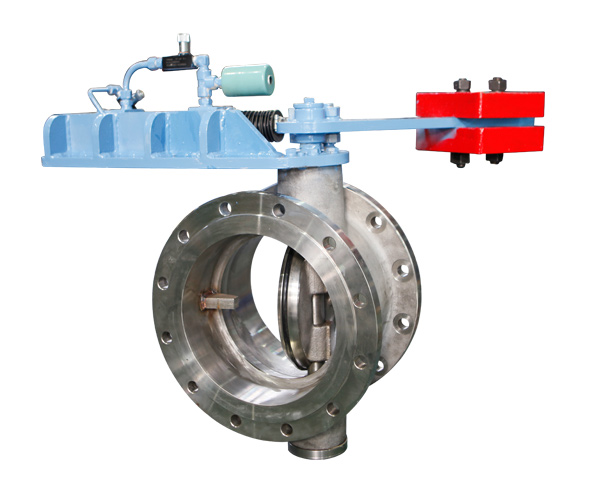

The non-return valve can be equipped wirh a counterweight and may have an optional hydraulic damper cylinder with a undirectional oil flow metering valve.
The weight (used only on horizontal line) can be adjusted continuously along the lever and permanently fixed to provide the minimum torque necessaryto properly close the valve.
The closing time of the valve can be controlled, within limits, by metering the hydraulic flow in a damper circuit
The unidirectional oil flow control valve hydraulic/damp-er cylinder can be set from full open to full closed by adjusting the external coupling. If required it is possible to furnish an auxiliary unidirectional oil flow metering valve which be used to abjust the opening time.
The hydraulic cylinder is complete with a by-pass device and safety valve set permit the free of the oil when the closing time is set too long or the hydraulic flow metering valve is not funcrtioning.
This abnormally high pressure can reached only if the closing time is set too long or the hydraulic flow metering valve is not functioning.
The high return flow in the butterfly valve caused by the valve closing too slowly can generate very high dynamic torque which could exceed allowable stresses if protected by the relief valve.
