Cryogenic Ball Valve

Cryogenic Control Valve

H2 Control Valve (High Pressure Valve)

LH2 Control Valve (Ultra-Cryogenic Valve)

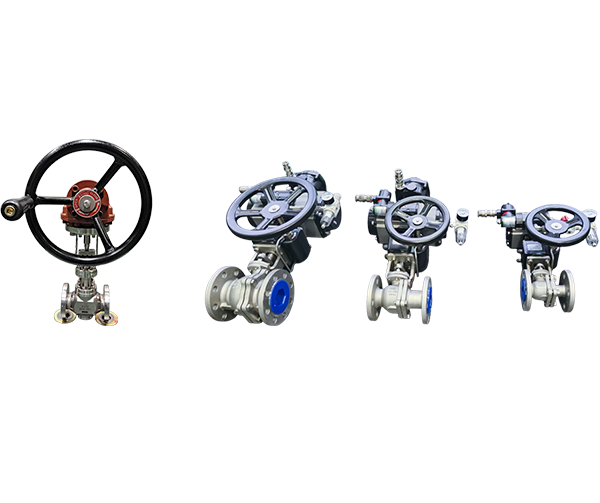

Methanol & Ammonia Valve

Cryogenic Ball Valve

Products

Specification

· Standard Design

: ASME B16.34

· Size

: 2” ~ 12”

· Rating

: ASME Class 150, 300, 600

· Temperature

: 196 ℃ ~ + 80 ℃

· Material

: A351 CF8M, CM3M, CF8, CF3

· Test & Inspection

: BS6364

Functions and Features

· Top Entry for In - Line Maintenance

· Bi - Directional

· Anti Blow out stem design

· Actuators (Pneumatic, Hydraulic, Electric)

Application

Service water

Waste water

Industrial plants

Cryogenic Control Valve

Products

Specification

· Standard Design

: ASME B16.34

· Size

: 1/2” ~ 12”

· Rating

: ASME Class 150 ~ 4,500

· Temperature

: -196 ℃ ~ + 80 ℃

· Material

: A351 CF8M, CM3M, CF8, CF3

· Test & Inspection

: BS6364

Test Pressure

Rating	Size
#150 ~ #300	½” ~ 16”
#600 ~ #900	2” ~ 8”
#1500	2” ~ 6”
#2500	1 ~ 3”

H2 Control Valve (High Pressure Valve)

Products

Standard specification

· Standard Design

: ASME B16.34

· Size

: 1/2”

· Design Pressure

: 900bar

· Temperature

: -35 ℃ ~ + 150 ℃

· Material

: A351 CM3M

LH2 Control Valve (Ultra-Cryogenic Valve)

Products

Standard specification

· Standard Design

: ASME B16.34

· Size

: 1/2” ~ 3”

· Design Pressure

: 40bar

· Temperature

: -270 ℃ ~ + 80 ℃

· Material

: A351 CM3M

· Test & Inspection

: BS6364
