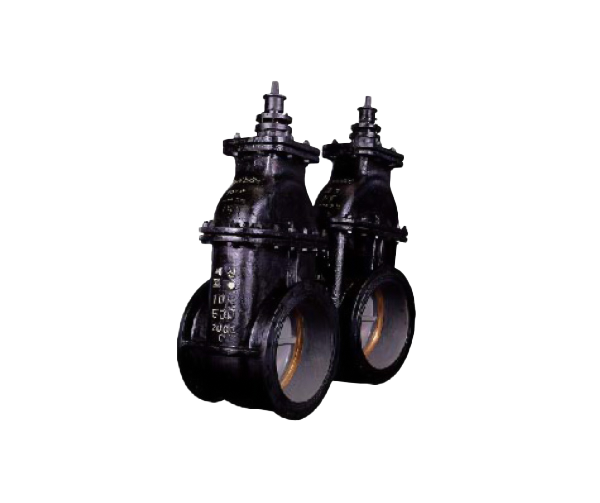

Sluice Valves

Products

Intended Primarily for use with service water, this valve meets specification of KS B 2334(7.5K, 10K, 16K, 20K).

Available in several models operated manually by motor by headstock, or by cylinder.

· Size

: 7.5K, 10K : 50~500mm
16K, 20K : 50~300mm

· Working Pressure

: 7.5kgf/㎠, 10kgf/㎠
16kgf/㎠, 20kgf/㎠

· Valve End

: 7.5kgf/㎠, 10kgf/㎠ : KS D 4309, ISO R 13
16kgf/㎠ / 20kgf/㎠ : KS B 1511(16K, 20K)

· Fluid

: Water, Sea Water

· Direction of Opening

: Counter-Clockwise to open

Part	Type 2 (7.5K)	Type 3 (10K)	Type 4 (16K)	Type 5 (20K)
Seat	7.5K	10K	16K	20K
Body	14K	21K	24K	30K

· Body - Ductile Cast lron(GCD 450), Steel Casting(SC 410)

· Disk - Ductile Cast lron(GCD 450), Steel Casting(SC 410)

· Stem - Stainless Steel(STS 340, STS 403)

- The Other materials are available on request

Seawater

Desalination Plants

Corrosive service
