BUTTERFLY VALVE

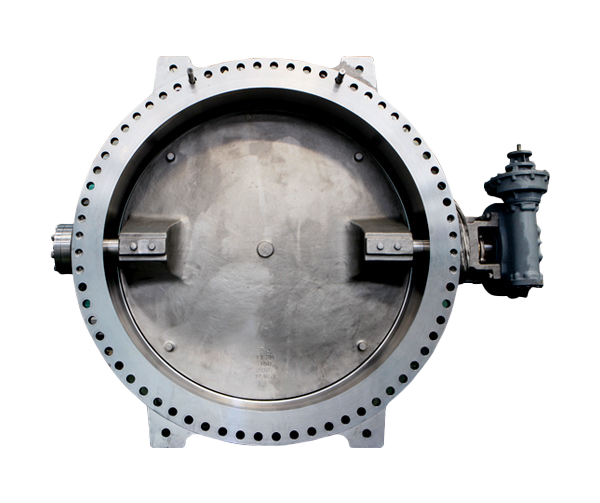

butterfly valve

Water works

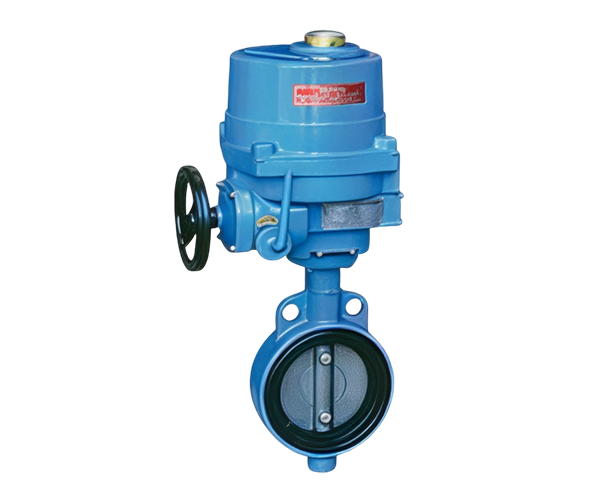

butterfly valve

Concentric type :
CRB, CTB, CHB

butterfly valve

Eccentric type :
1) Single Eccentric

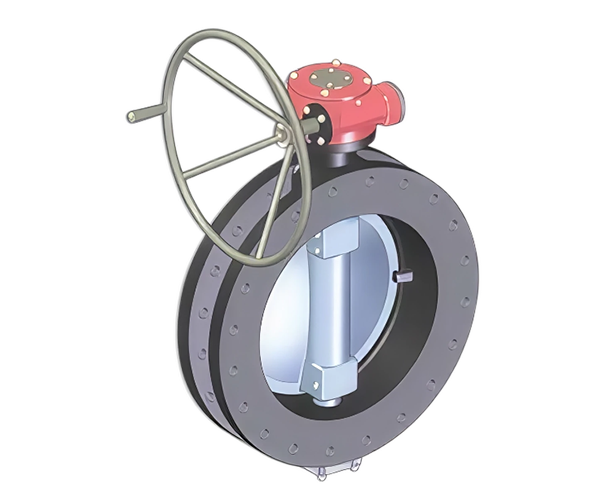

butterfly valve

Eccentric type :
2) Double Eccentric

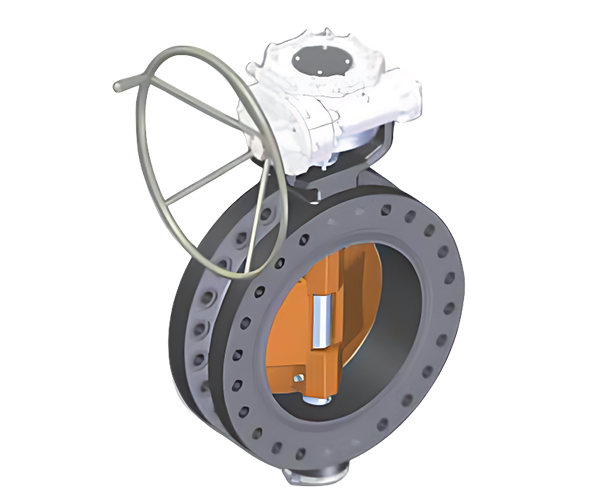

butterfly valve

Eccentric type :
3) Triple eccentric

Water works

Intended Primarily for use with service water, this valve meets Specification of KS B 2333, BS 5155, AWWA C 504, JIS B 2064, available in several medels, operated manually, by motor, by cylinder, by head stock operation is easy and suited for heavy duty services.

Authorized by permit No. 02-2864 which grant use of K.S mark on the butterfly valve produtcs.

Specification

· Type of fluid
: Service water
· Max. Working pressure
: Type 1-4.5kgf / ㎠ (AWWA CLASS 25B)
Type 2-7.5kgf / ㎠ (AWWA CLASS 75B)
Type 3-10kgf / ㎠ (AWWA CLASS 150B)
· Nomorinal dimeter
: 200~30,000mm (8” ~ 120”)
· Flange dimension
: KS D 4309, AWWA C 207, Other Standards are available on request
· Installation
: Horizontal, Vertical or Floor Type
· Operation
: Manual, Electric, Cylinder Type

Application

Service water
Waste water
Industrial plants

Product information

Concentric type : CRB, CTB, CHB

Standard specification

  CRB CHB CTB
Size range 1 1/2" ~ 48" (Wafer type)
1 1/2" ~ 72" (Lug/Flange type)		 2" ~ 24" 2" 24"
Pressure rating 5K, 10K, 16K, 150# 20 Bar 7 Bar, 10Bar
Body style Wafer, Lug, Flange Wafer, Lug Wafer, Lug (Two pieces)
Temperature range -40℃ ~ 200℃
Flange driling ANSI B16.5, DIND 2501, BS4504 JIS B2210
Face-to-face dimension ISO 5752, API 609, MSS SP-57, DIN 3202 KI, BS 5155
Top flange mounting ISO 5211
Actuator Lever handel, Worm gear, Electric actuator, Pneumatic actuator

Product information

Products

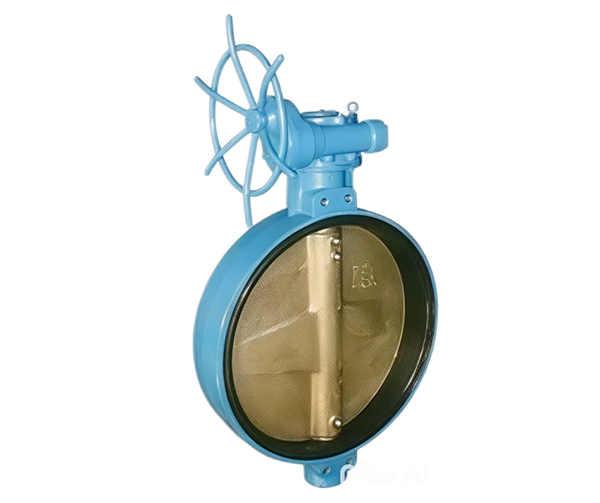

CONCENTRIC TYPE
CONCENTRIC TYPE

Eccentric type :
1) Single Eccentric : SOD, SOB, HFA

Standard specification

Type of Fluid Service water
MAX. Working pressure Type 1 - 4.5kgf/cm2 (AWWA CLASS 25B)
Type 2 - 7.5kgf/cm2 (AWWA CLASS 75B)
Type 3 - 10kgf/cm2 (AWWA CLASS 150B)
Norminal diameter 8" ~ 120" (200 mm ~ 3,000 mm)
Flange dimension KS D 4309, AWWA C 207, Other Standards are available on request.
Installation Horizontal, Vertical or Floor type
Operation Manual, Electric, Cylinder type

Product information

Products

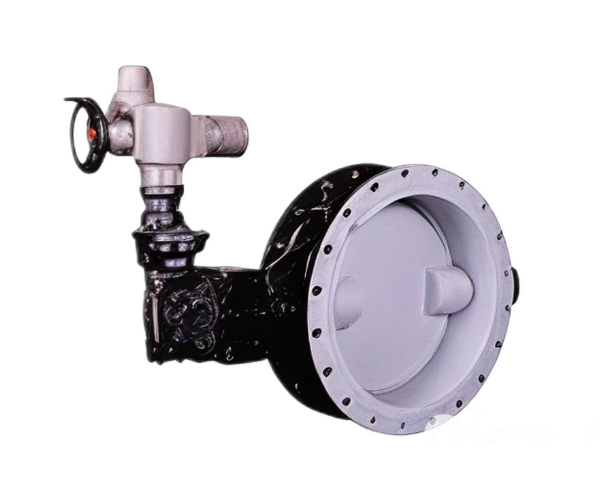

CONCENTRIC TYPE
CONCENTRIC TYPE

Eccentric type :
2) Double Eccentric : HFC, HFR(M), HFT(M), HFM

Standard specification

Standard design API609
Face-to-face demensions API609
End flange dimensions ASME B16.5 / B16.47 Series A
Pressure and Temperature ratings
Body thickenss		 ASME B16.34, API609
Test & inspection API609, API598
material ASTM Material Specifications
as per ASME B16.34
Type Flange, Wafer, Lug

Product range

  Double flnge type Lug type Wafer type
  Short pattern Long pattern
ASME B16.5 / B16.47 Series A, Class 150 3" ~ 60" 3" ~ 36" 3" ~ 48" 3" ~ 48"
ASME B16.5 / B16.47 Series A, Class 300 3" ~ 60" 3" ~ 36" 3" ~ 36" 3" ~ 36"

Product information

Products

Cryogenic Ball Valve

Eccentric type :
3) Triple eccentric : TOM

Standard specification

Standard design API609
Face-to-face demensions API609
End flange dimension ASME B16.5 / B16.47 Series A
Pressure and Temperature ratings
Body thickenss		 ASME B16.34, API609
Test & Inspection API609, API598
Material ASTM Material Specifications
as per ASME B16.34
Type Flange, Wafer, Lug

Product range

  Double flnge type Lug type Wafer type
  Short pattern Long pattern
ASME B16.5 / B16.47 Series A, Class 150 3" ~ 60" 3" ~ 36" 3" ~ 48" 3" ~ 48"
ASME B16.5 / B16.47 Series A, Class 300 3" ~ 60" 3" ~ 36" 3" ~ 36" 3" ~ 36"
ASME B16.5 / B16.47 Series A, Class 600 3" ~ 24" 3" ~ 36" 3" ~ 24" 3" ~ 24"
